Power up cranes with Telecrane® Radio Joystick Controllers.

High Performance and Compact. Applicable with Telecrane® Radio Joystick Controllers.

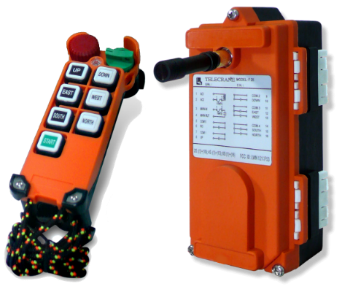

F25-6S


F25-6S GENERAL SPECIFICATION


EMS Button × 1    Start Button × 1    Rotary Key × 1

6 Single Step Buttons

Package includes: One Transmitter + One Receiver





RF Unit:          Microprocessor controlled PLL synthesizer (160 Channels)

RF Power:      FCC Part 15 (50mV/meter field strength)

RF Approval: License-free in North America

Installation:     Pre-wiring cable for quick and easy installation

Casing:           Durable casing with extra shock resistance (IP65)

Temperature Range:            -49°F to 185°F (-40°C to +85°C)

Operation Range:     Up to 110 yards (100 meters)




TRANSMITTER

                        Power Supply:   Four 1.5 Volts Batteries

Dimensions:      6 1/8×2 3/8×2 inches (156×61×51 mm)

Weight: About 0.47 lbs (215 g) w/o batteries

Power Indication:           3 Stage with LED Indicator


RECEIVER



Power Supply:   24/48/(110)/220/380 VAC 50-60 Hz(±20%)

Dimensions:      7.28×3.35×3.35 inches (185×85×85 mm)

Weight: About 1.21 lbs (550 g) without Cable

Vehicle Unit:  12 - 24 VDC   For Vehicle installations

Default VAC: (110 VAC)

SAFETY-HIGH PERFORMANCE-RELIABLE TELECRANE USA CANADA

F25-6S TELECRANE
